1080P DLP projector SM9-405B for 3D printer with wide lens and high power UV LED

FOB Reference Price:Get Latest Price
  • 1 - 4 Units
    US $3450.00
  • >=5 Units
    US $3300.00
Report Suspicious Activity
Overview
Quick Details
Type:
Digital Projector
Style:
DLP
Use:
Business & Education, 3D printer and 3D scanner
Home Theater Projector:
No
Portable:
Yes
Brightness:
Other
Contrast Ratio:
1500:1
Weight:
2kg
Resolution:
1920*1080
Projection Distance:
70mm-300mm
Lamp:
UV LED
Lens:
F=2.0
Brand Name:
SICUBE
Model Number:
SM9-405B
Place of Origin:
Guangdong, China (Mainland)
Light source:
UV405
Supply Ability
Supply Ability:
50 Unit/Units per Week
Packaging & Delivery
Packaging Details
normal box with USB cable and HDMI cable and charger
Port
HongKong
Lead Time :
7days

I. Overview




SM9-405 DLP printer light engine suits is a compact light engine which can be used in the fields of industry, medicine . The TI DLP display driving technique is used in the core part, and the display unit uses the DLP 0.65DMD with the resolution of 1920*1080.



The light engine module optimizes 405nm. It uses multiple models to control the lightness and  on-off  of the LED in hardware, provides debugging and developing platform in software to meet different users’ needs in different environments, and provides a high-resolution, high-lightness and programmable compact light engine module to the users.

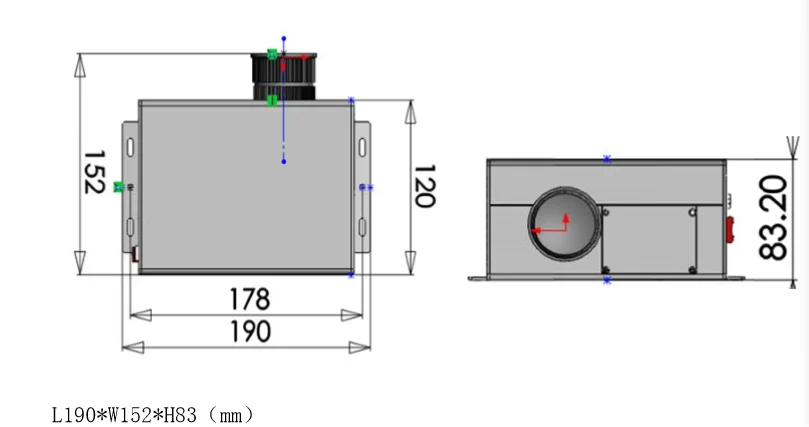

II. Structure and diagram
















Typical system principle






III. Parameters



Display technique

DLP 0.65” 1080P DMD

Physical resolution

1920*1080

Light power

3.5W @80nm

Contrast

1500:1

Uniformity



>95%

Light source channel

Singe channel

   Projection light source

UV405

Offset

Without offset

        Power supply





AC110V-240V,50/60HZ,DC 12V /5A

 Total power

<60W

Total dimension

L190*W173*H83 (mm)

Materials



Body: All metal;             Optics:All glass;







Interfaces



   DC IN         x1

   HDMI         x2

   Mini USB    x1

   External LED/PWR ONOFF x1









Software function

•    System power soft on & off

•    LED current adjusting and switch controlling

•    System image displaying and image position adjusting and controlling

•    Evaluating and referring the motor module related to 3D printing

•    Other customized requirements

•    SDK
